Introduction：

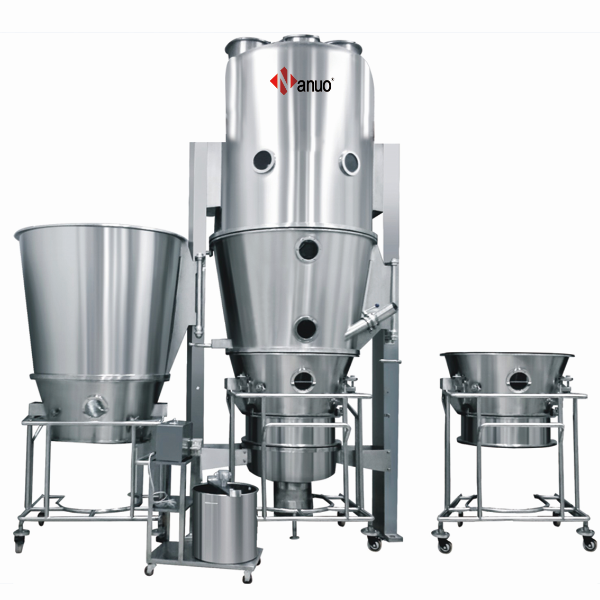

Model DFL Fluid Bed Processor is an equipment which combines drying, granulating, coating, pelletizing and blending functions. It is an important process equipment for the production of solid dosage in the pharmaceutical industry. It is widely used in pharmaceutical, foodstuff and chemical industries.

Working Principle：

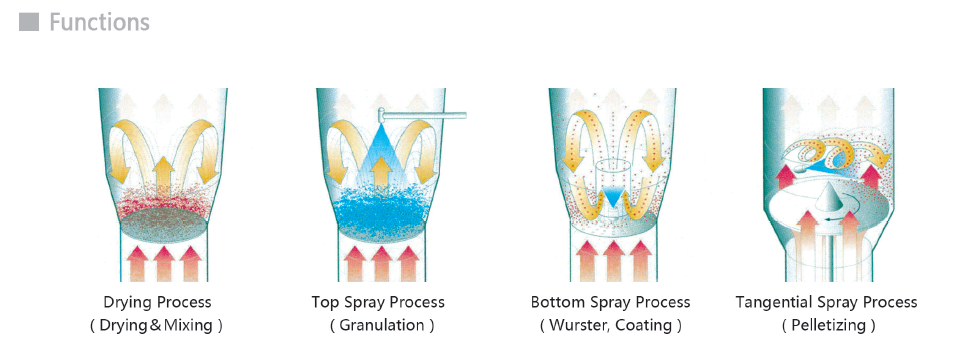

The system is equipped with an inlet and exhaust system, filtration system, liquid supply system, top spray, bottom spray, and tangential spray  system. The top spraying is for granulation; the bottom spraying is for coating; the tangential spraying is for making pellets. The above functions are all realized in one equipment. Users can select the required function according to the actual production process.

Features：

■ During the tangential spraying, vertical air inlet structure specially designed by NANO ensures that pellets are evenly distributed on the plate, and liquid is evenly distributed without being partially offset
■ Top spray (one-step granulation) process with good stability and high yield rate
■ The coating solution in the bottom spray process has good film formation and uniform coating
■ Flexible configuration allows functional selection according to production requirements.
■ A variety of process parameters are controlled in one control center, with high process automation, and good stability
■ High explosion-proof level and sealing level increase the production safety factor, reducing the dust contamination
■ WIP cleaning nozzles meet the cleaning requirements.
